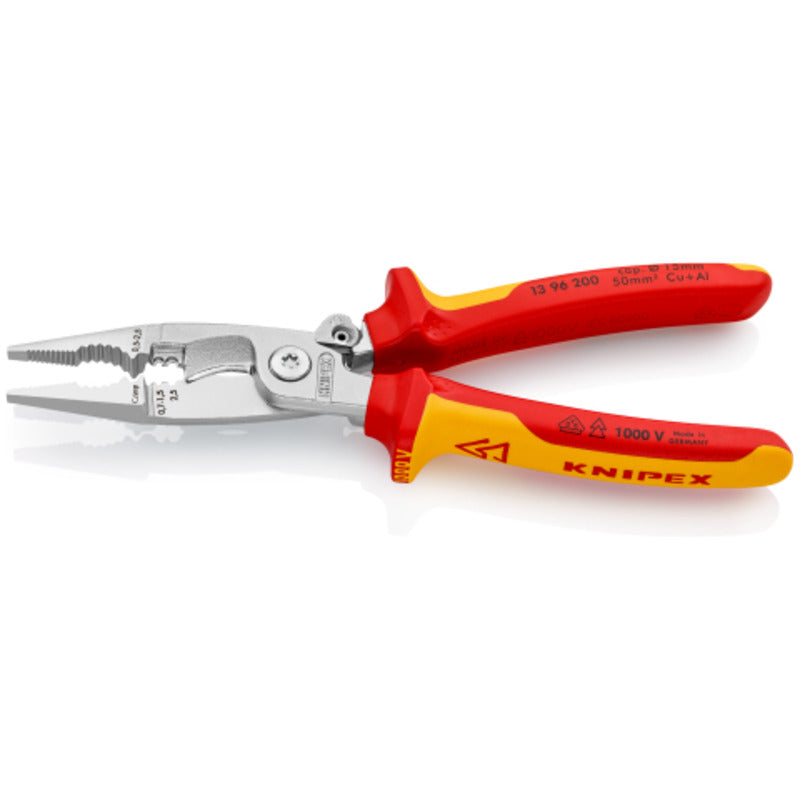

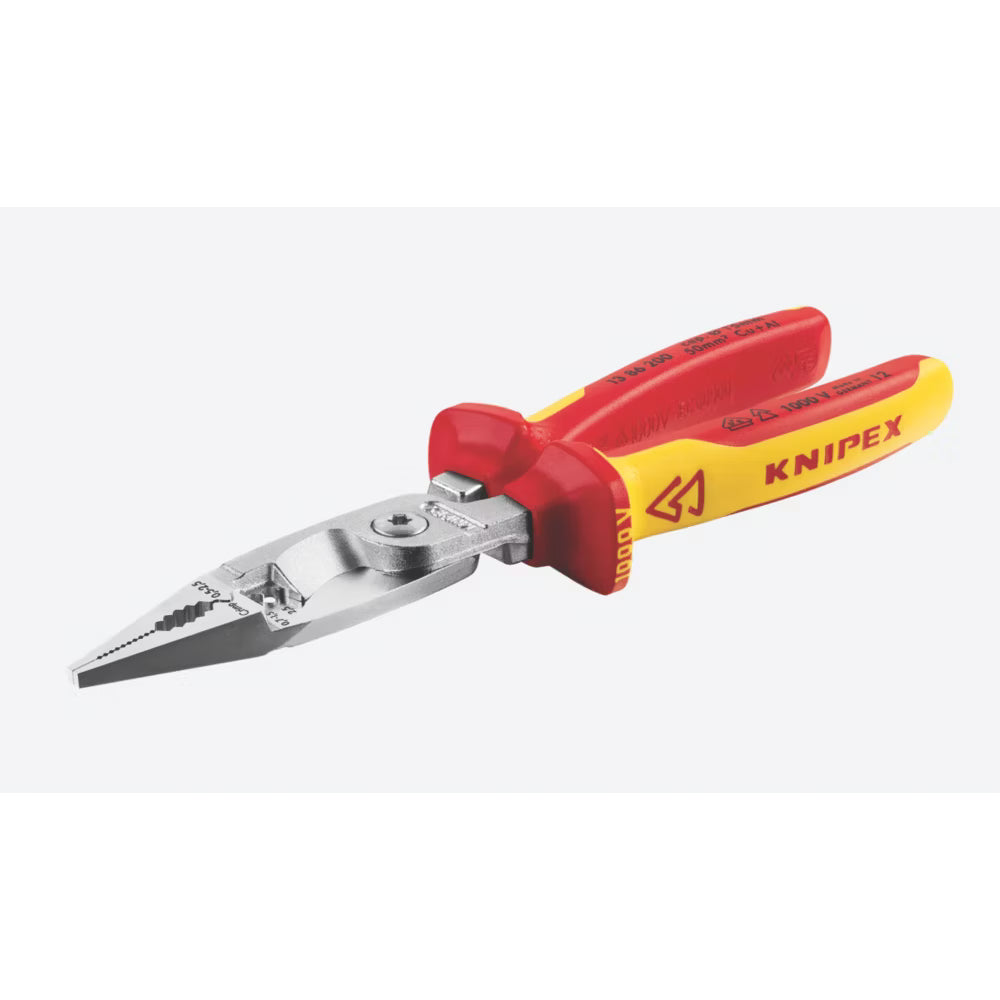

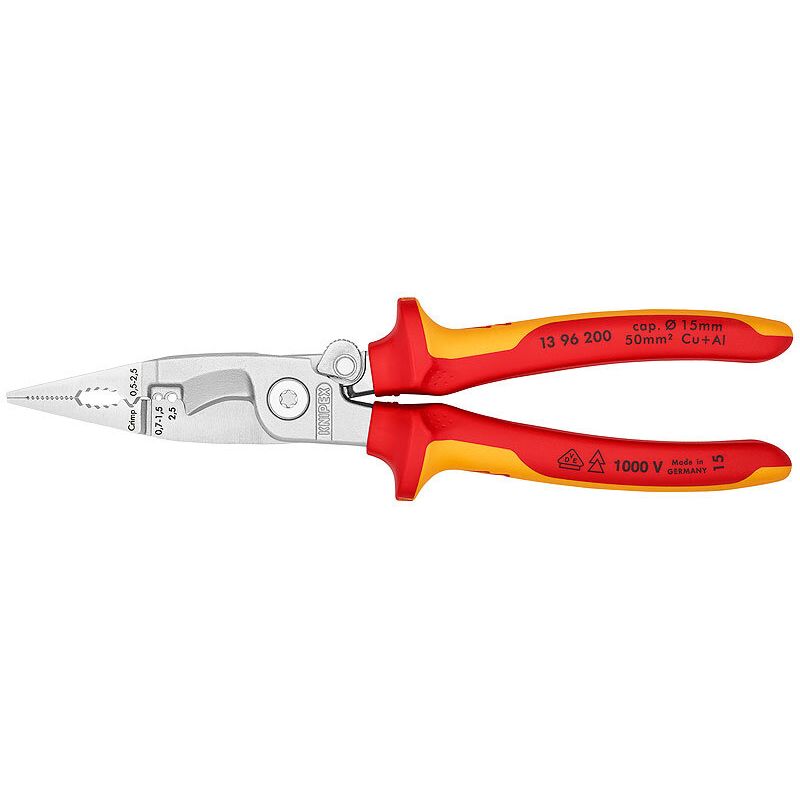

Knipex 1396200 Multifunctional Pliers with Activated Locking Lever and Latching Mechanism

Knipex 1396200 Multifunctional Pliers with Activated Locking Lever and Latching Mechanism

• 6 functions in one pair of pliers
• To grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules
• Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material

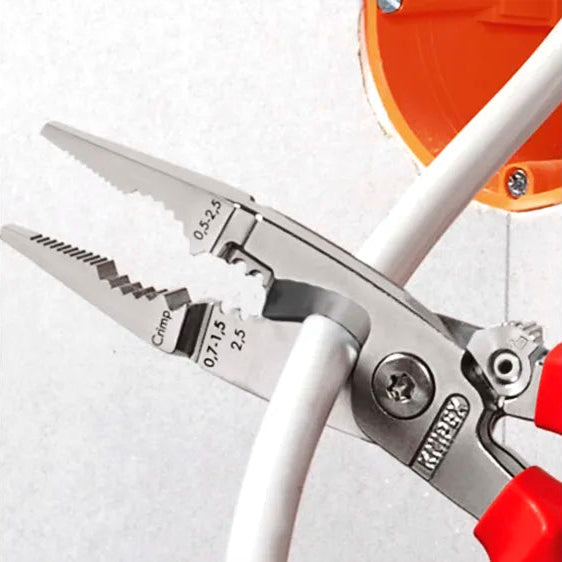

• Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes
• Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm²

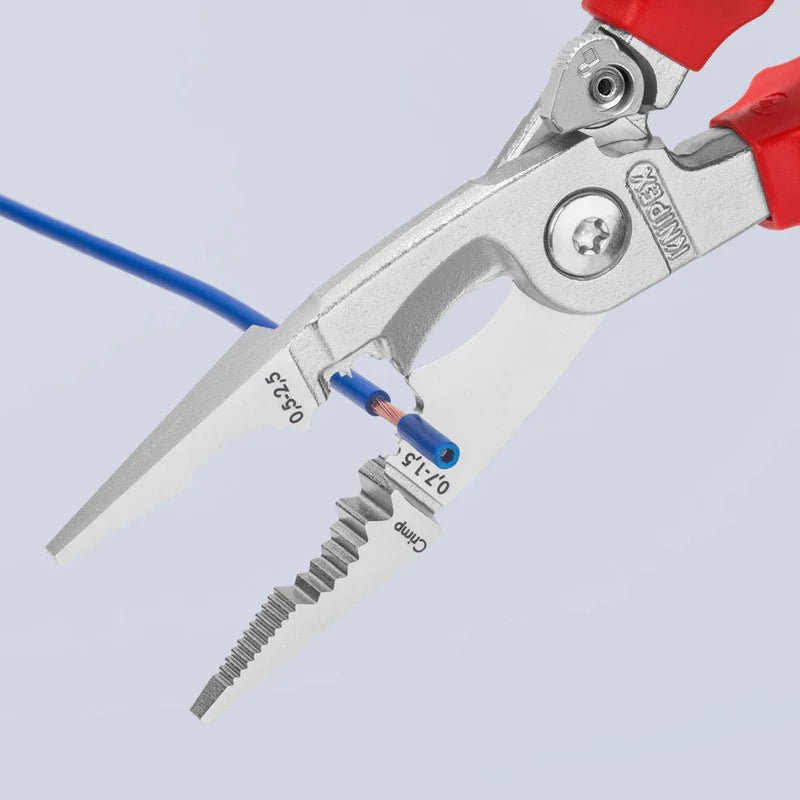

• Crimping die for wire ferrules 0.5 - 2.5 mm²
• Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm
• Slim dimensions for easy access
• Bolted joint: precise, zero backlash operation of pliers in case of models with an opening spring integrated in the joint, the activated locking lever keeps the cutting edges closed while other functions remain active
• The intelligent latching mechanism enables you to "grip" without opening the pliers. The cutting edge remains closed and protected.

Specifications

• Weight   276 g
• Dimensions   200 x 85 x 20 mm
• Cutting capacity copper cable, multiple-stranded    Ø 15 mm
• Cutting capacity copper cable, multiple-strandedCutting capacity copper cable, multiple-stranded   50 mm²
• Stripping capacity for single strands     0.75 — 1.5 mm² / 2.5 mm²
• Capacity in square millimetres   0.5 — 2.5 mm²
